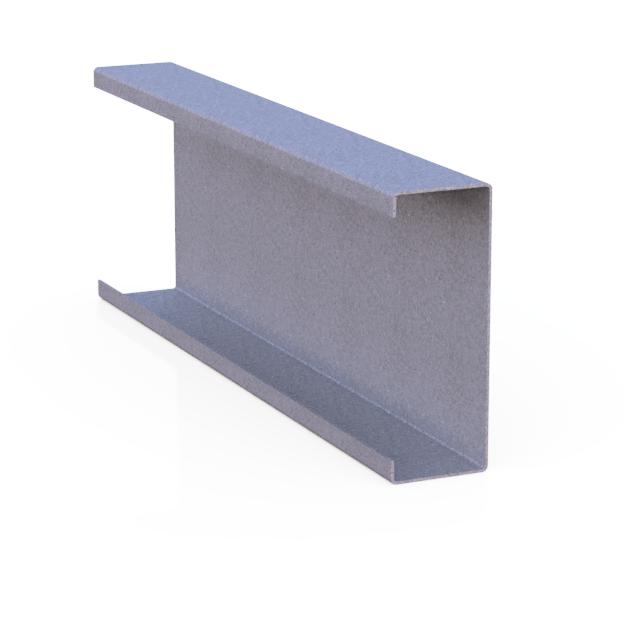

GALVANISED C SECTION SUPPLIER
C Purlins manufactured for your needs available in a wide range of depths
Our Product range is made from cold rolled steel with a depths from a minimum depth of 140mm through to 265mm deep, providing customers with a range of options to suit their specific project requirements.
We deliver superior products and pride ourselves on our Industry knowledge & customer service. Our C purlins are manufactured from pre-hot dipped galvanised steel, featuring a G275 coating with a minimum yield strength of 450N/mm². Designed in strict accordance with BS EN5950, customers can rely on the highest standards of quality and performance.
Whether your project is residential or commercial in nature, Tinman Steel supplies a complete range of C sections for successful construction projects.
C PURLINS SIZE SPECIFICATIONS
Request a Free Quote today
|
Section Reference
|
Depth (mm)
|
Thickness (mm)
|
Top Flange (mm)
|
Bottom Flange (mm)
|
Wt/m (Kg/m)
|
|
C140-16
|
140
|
1.6
|
65
|
65
|
3.69
|
|
C140-18
|
140
|
1.8
|
65
|
65
|
4.14
|
|
C140-20
|
140
|
2.0
|
65
|
65
|
4.57
|
|
C140-25
|
140
|
2.5
|
65
|
65
|
5.69
|
|
Section Reference
|
Depth (mm)
|
Thickness (mm)
|
Top Flange (mm)
|
Bottom Flange (mm)
|
Wt/m (Kg/m)
|
|
C177-16
|
177
|
1.6
|
65
|
65
|
4.15
|
|
C177-18
|
177
|
1.8
|
65
|
65
|
4.66
|
|
C177-20
|
177
|
2.0
|
65
|
65
|
5.17
|
|
C177-25
|
177
|
2.5
|
65
|
65
|
6.42
|
|
Section Reference
|
Depth (mm)
|
Thickness (mm)
|
Top Flange (mm)
|
Bottom Flange (mm)
|
Wt/m (Kg/m)
|
|
C200-16
|
200
|
1.6
|
65
|
65
|
4.44
|
|
C200-18
|
200
|
1.8
|
65
|
65
|
4.99
|
|
C200-20
|
200
|
2.0
|
65
|
65
|
5.53
|
|
C200-25
|
200
|
2.5
|
65
|
65
|
6.87
|
|
Section Reference
|
Depth (mm)
|
Thickness (mm)
|
Top Flange (mm)
|
Bottom Flange (mm)
|
Wt/m (Kg/m)
|
|
C235-16
|
235
|
1.6
|
65
|
65
|
4.88
|
|
C235-18
|
235
|
1.8
|
65
|
65
|
5.48
|
|
C235-20
|
235
|
2.0
|
65
|
65
|
6.08
|
|
C235-25
|
235
|
2.5
|
65
|
65
|
7.56
|
|
Section Reference
|
Depth (mm)
|
Thickness (mm)
|
Top Flange (mm)
|
Bottom Flange (mm)
|
Wt/m (Kg/m)
|
|
C265-16
|
265
|
1.6
|
65
|
65
|
5.26
|
|
C265-18
|
265
|
1.8
|
65
|
65
|
5.90
|
|
C265-20
|
265
|
2.0
|
65
|
65
|
6.55
|
|
C265-25
|
265
|
2.5
|
65
|
65
|
8.14
|
C Purlins in Construction
C purlins structural elements are widely used across the construction industry, particularly in roofing and cladding systems for industrial, commercial, and agricultural projects. Defined by their 'C' shape, these purlins boast two flanges linked by a vertical segment. They are valued for their adaptability, resilience.
Manufactured from premium galvanised steel, Tinman Steels C Purlins are robust with a lightweight design, allowing for straight forward installation. Available in assorted thicknesses & depths, they mainly serve as horizontal beams spanning between columns or rafters, improving stability and strength structures.

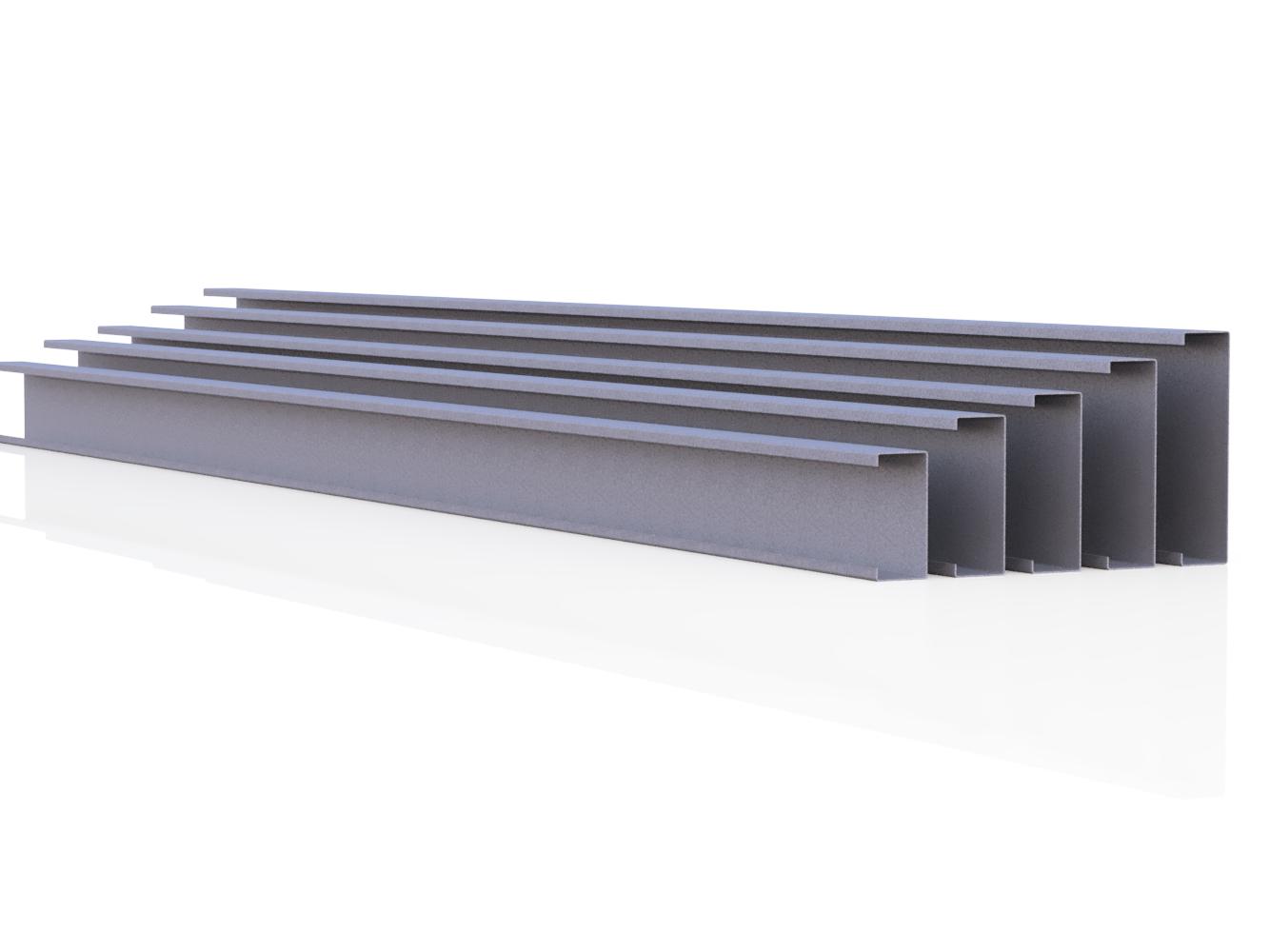

Trusted C Purlins Supplier
As a trusted supplier, Tinman Steels support our customers throughout the purchase journey, helping clients to find the most suitable C purlins for their specific project. Whether determining optimal dimensions or offering technical insights into installation we are here to help!
Advantages of C Purlins
Structural Integrity: Provide essential support to roofing and cladding systems, addressing uneven weight distribution & structural weakness.
Corrosion Resistance: Galvanised coated C sections that protect against corrosion and rust, allowing for a prolonged lifespan making them suitable for outdoor use.
Versatility: For use on commercial, agricultural, and residential projects. C purlins are adaptable for all your construction needs.
Lightweight Construction: Despite their durability, C purlins maintain a lightweight profile, easing transportation and handling while minimising structural load.
Effortless Installation: Engineered for convenience, C sections feature standard dimensions and pre-punched holes, allowing for onsite assembly and trimming labor costs.
Cost Efficiency: C purlins offer exceptional value, delivering a cost-effective means of structural reinforcement.
